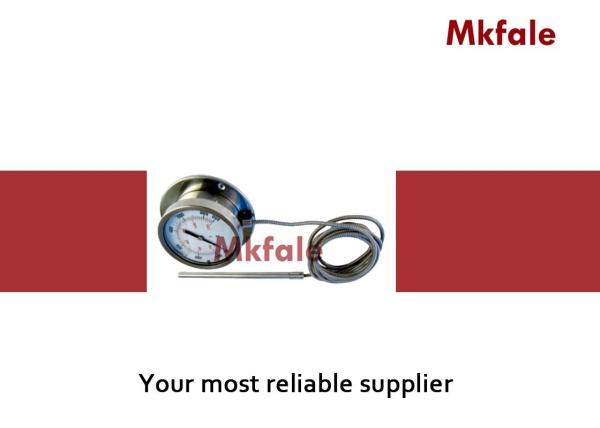

SMGC Stainless Steel Gas Expansion Capillary Thermometer Liquid Pressure Gauge

Name: SMGC Stainless Steel Gas Expansion Capillary Thermometer Liquid Pressure Gauge
Brand: Mkfale
Price: 1 USD

Brand Name : Mkfale

Model Number : SMGC

Place of Origin : China

MOQ : 20

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : Negotiation

Delivery Time : 5 - 30 Work Days

Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice

Nominal Size : 4",and 6"(100 and 150mm)

Accuracy Class : Class 1.6

Connection Size : Sliding connection standard

Thread : G1/4",G1/2" or NPT

Scale Range Mounting : Bottom , Back , wall or panel mount

Pressure on stem : Max 25Bar

Filling : Dry, but fillable Sillcone oil

Temperature : - 40 + 650 C

Contact Now

SMGC Stainless Steel Gas Expansion Capillary Thermometer With High Temperature

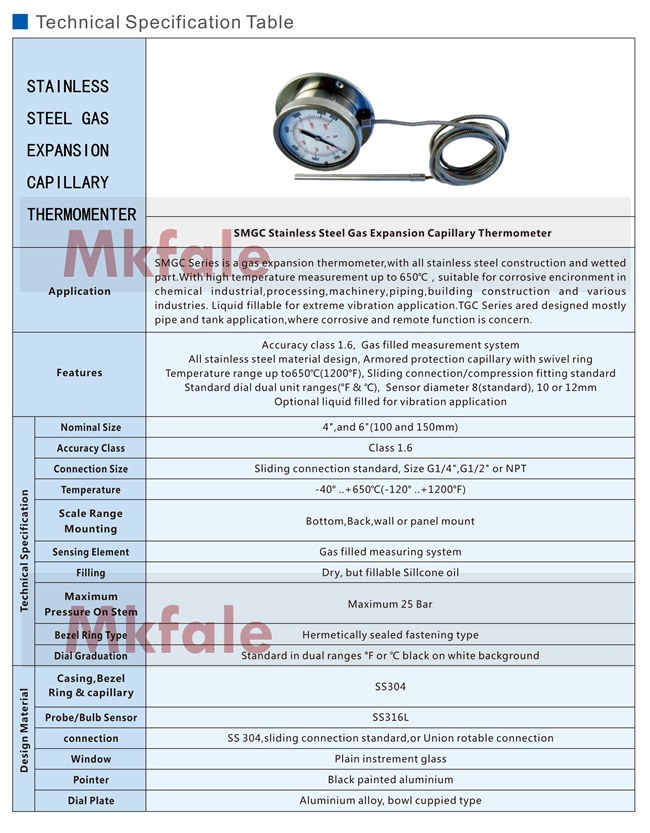

Technical Specification Table

Type		SMGC Stainless Steel Gas Expansion Capillary Thermometer
Application		SMGC Series is a gas expansion thermometer,with all stainless steel construction and wetted part.With high temperature measurement up to 650℃,suitable for corrosive encironment in chemical industrial,processing,machiner y,piping,building construction and various industries. Liquid fillable for extreme vibration application.TGC Series ared designed mostly pipe and tank application,where corrosive and remote function is concern.
Features		Accuracy class 1.6, Gas filled measurement system All stainless steel material design, Armored protection capillary with swivel ring Temperature range up to650℃(1200°F), Sliding connection/compression fitting standard Standard dial dual unit ranges(°F & ℃), Sensor diameter 8(standard), 10 or 12mm Optional liquid filled for vibration application
Technical Specification	Nominal Size	4",and 6"(100 and 150mm)
	Accuracy Class	Class 1.6
	Connection Size	Sliding connection standard, Size G1/4",G1/2" or NPT
	Temperature	-40° ..+650℃(-120° ..+1200°F)
	Scale Range Mounting	Bottom,Back,wall or panel mount
	Sensing Element	Gas filled measuring system
	Filling	Dry, but fillable Sillcone oil
	Maximum Pressure On Stem	Maximum 25 Bar
	Bezel Ring Type	Hermetically sealed fastening type
	Dial Graduation	Standard in dual ranges °F or ℃ black on white background
Design Material	Casing,Bezel Ring & capillary	SS304
	Probe/Bulb Sensor	SS316L
	connection	SS 304,sliding connection standard,or Union rotable connection
	Window	Plain instrement glass
	Pointer	Black painted aluminium
	Dial Plate	Aluminium alloy, bowl cuppied type

Why choose us

1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

SMGC Stainless Steel Gas Expansion Capillary Thermometer Liquid Pressure Gauge
