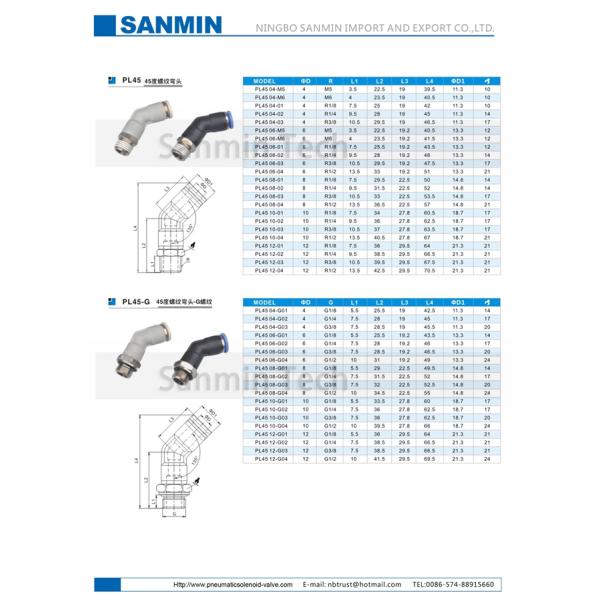

PL45 Degree Elbow Male Connector Pneumatic Air Compressor Push in Fittings High Quality Sanmin
Specification
| 1 | Brass with good nice nickel plated. |
| 2 | BSPT thread (British Standard Taper Pipe Thread). |
| 3 | Each and every pcs was tested at 10kgs/cm2. |
| 4 | Thread with PTFE coating which can seal directly without any other seal material. |
1.One – Touch tube fittings are used in pneumatics piping
2.The tube fittings come in a wide variety of models to meet all your needs in pneumatics piping
3.Even after installation , the direction of the tube can be changed freely
4.Nickel – Plated metal body ensures Anti – Corrosion and Anti – Contarmination
5.All R and NPT Threads are Pre – Coated sealant .
6.All cylindrical threads are standard with O-Ring Seals
| Fluid | Air , Vacuum |
| Operating Pressure | 0-1.0MPa |
| Negative Pressure | -100KPa (10Torr) |
| Max Pressure | 1.5MPa |
| Operating Temperature | 5 ~ 60 ℃ |
| Applicable Tube | Polyurethane and Nylon |
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: One year quality guarantee
5: Large stock for fast shipping .
| There are a wide variety of plastic pneumatic connectors, which are mainly distinguished according to their functions, connection modes, structures and application scenes. Common types include quick-plug connectors (such as straight, elbow and tee), threaded connectors (such as straight thread and bent thread) and connectors with special functions (such as reducing diameter, rotating, high pressure and sealing).Classified by connection mode and function
Push-to-Connect: This is the most common type, allowing quick connection by direct insertion into the gas pipe (usually PU or nylon), making it easy to operate and widely used in situations where frequent disassembly and assembly are required.
Straight-through joint: realize straight connection of two air pipes.Elbow: connect the air pipe with 90 ° bend.
Tee joint: divide one air pipe into two or combine two air pipes into one. Reducer: connect air pipes of different diameters. |
|
