MXJ Air Slide Table M3 × 0 . 5 Piping Port Size Double Acting Non - Lube Standard Equipment Cylinder

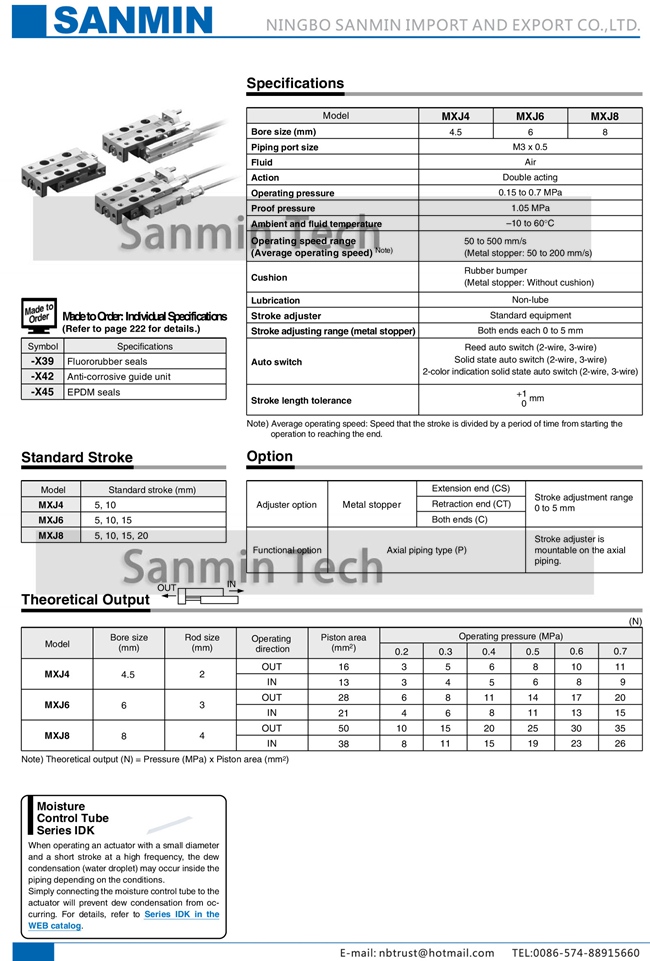

Specifications
| Model | MXJ4 | MXJ6 | MXJ8 |
| Bore Size ( mm ) | 4 . 5 | 6 | 8 |
| Piping Port Size | M3 × 0 . 5 |
| Fluid | Air |
| Action | Double Acting |
| Operating Pressure | 0 . 15 to 0 . 7 MPa |
| Proof Pressure | 1 . 05 MPa |
| Ambient and Fluid Temperature | - 10 to 60 ℃ |
| Operating Spend range ( Average operating speed ) Note ) | 50 to 500 mm / s ( Metal Stopper : 50 to 200 mm/s ) |
| Cushion | Rubber Bumper ( Metal Stopper : Without cushion ) |
| Lubrication | Non - Lube |
| Stroke Adjuster | Standard Equipment |
| Stroke Adjuster range ( Metal stopper ) | Both ends each 0 to 5 mm |
| Auto Switch | Reed auto switch ( 2 – wire , 3 – wire ) Solid state auto switch ( 2 – wire , 3 – wire ) 2 – Color indication solid state auto switch ( 2 – wire , 3 – wire ) |
| Stroke length tolerance | +1mm 0mm |
Standard Stroke
| Model | Standard Stroke ( mm ) |
| MXJ4 | 5 , 10 |
| MXJ6 | 5 , 10 , 15 |
| MXJ8 | 5 , 10 , 15 , 20 |
Symmetric Type
Nil : Standard
L : Symmetric
Adjuster Option
Nil : Without adjuster
CS : Metal stopper on extension end
CT : Metal Stopper on returaction end
C : Metal Stopper on both ends
Functional Option
Nil : With out Option
P : Axial piping Type
Switch rail
Nil : With magnet and switch rail
N : Without magnet and switch rail
Auto switch
Nil : Without auto switch ( Built - in magnet )
Number of auto switches
Nil : 2 pcs
S : 1 pc
n : " n " pcs
Mode to Order
Refer ro page 210 for details
